Washer Extractor

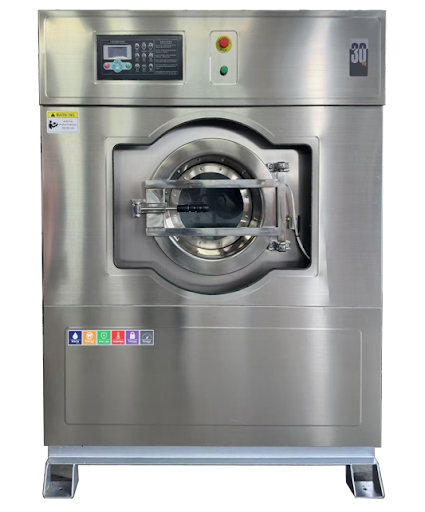

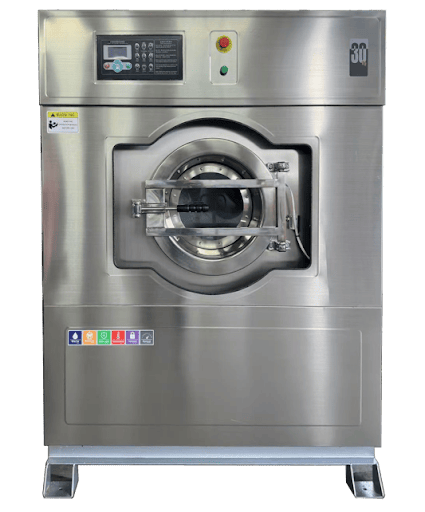

QXXJ fully automatic shoe washer extractor
- Home
- QXXJ fully automatic shoe washer extractor
LDF Machinery Pvt. Ltd.
CHARACTERSTIC AND PARAMETERS

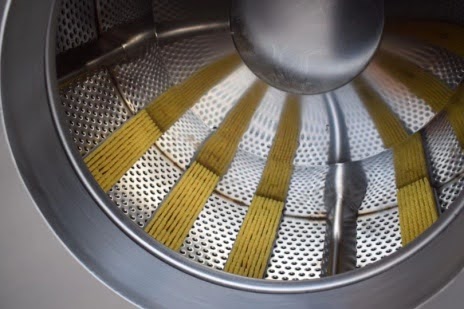

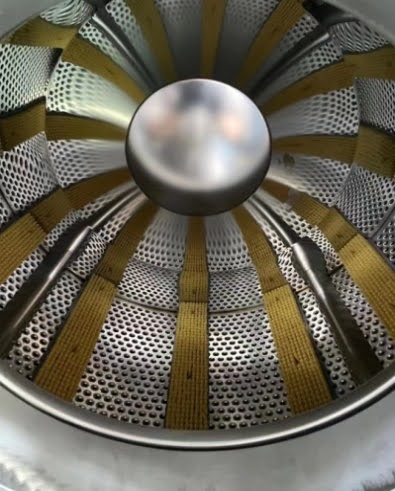

- The inner drum adopts a stainless steel structure, which is smooth, clean, and does not damage the shoes; the outer drum adopts anti-corrosion treatment for good corrosion resistance.
- The storage door adopts a stainless steel structure with a lightweight body, easy to open and close, and equipped with impact- and heat-resistant glass. Allows direct observation of shoe washing while in operation.
- Equipped with a washing roller suspension device and hydraulic friction damping to reduce vibration during the dehydration process.
- Dual-purpose washing and dehydration machine with variable frequency speed control — saves space, reduces loading/unloading time, and improves labor efficiency.
- Compact size, beautiful appearance, robust structure, user-friendly operation, efficient cleaning, and easy maintenance — an ideal solution for shoe washing.
- Microcomputer control system with LCD display, making operation simple and ensuring high reliability.
| Model | QXXJ-15 | QXXJ-20 | QXXJ-25 | QXXJ-30 |
|---|---|---|---|---|
| Washing capacity (Kg) | 15 | 20 | 25 | 30 |
| Washing cylinder size (mm) | 700×430 | 700×480 | 800×500 | 800×580 |
| Washing & Dewatering speed (rpm) | 45/750 | 45/750 | 45/750 | 45/700 |
| Rated voltage (V) | 220/380 | 220/380 | 220/380 | 380 |
| Motor power (KW) | 1.5 | 2.2 | 2.2 | 3 |
| Converter model | 1.5 | 2.2 | 3.7 | 4 |
| Heating power (KW) | 6 | 6 | 6 | 10 |
| Cold water inlet (inch) | 3/4 | 3/4 | 3/4 | 1 |
| Steam inlet (inch) | 1/2 | 1/2 | 1/2 | 1/2 |
| Drainage caliber (inch) | 2 | 2 | 2 | 2 |
| Overall dimension (mm) | 1100×1080×1640 | 1100×1080×1640 | 1190×1250×1700 | 1290×1250×1700 |
| Weight (Kg) | 550 | 600 | 700 | 800 |
