Washer Extractor

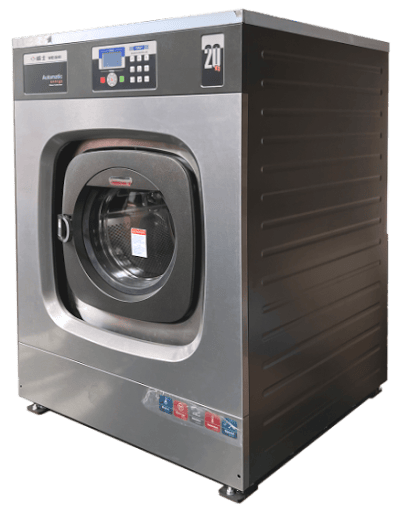

SXQ New Type Small Washer Extractor

  • Home
  • SXQ New Type Small Washer Extractor
LDF Machinery Pvt. Ltd.
LDF Machinery

CHARACTERSTIC AND PARAMETERS

  • The inner drum adopts stainless steel structure, which is smooth, clean and does not damage the fabric; the outer drum is treated with anti-corrosion coating, ensuring good corrosion resistance.
  • The storage door is made of stainless steel with a lightweight body, allowing easy and convenient opening and closing. It features impact-resistant and heat-resistant glass, enabling users to observe fabric washing conditions during operation.
  • The washing drum is equipped with a suspension system featuring hydraulic and friction damping, which significantly reduces vibration during the dehydration process and effectively resolves long-standing issues with excessive vibration.
  • The machine supports both washing and dehydration functions. With frequency conversion speed control, it reduces space usage, saves garment loading/unloading time, and enhances work efficiency.
  • Compact in size and attractive in design, the machine features a robust and simple structure, easy operation, excellent washing performance, and convenient maintenance—making it an ideal choice for fabric care.
  • Equipped with a microcomputer control system and LED liquid crystal display, offering user-friendly operation and high reliability.
  • Supports multiple intelligent features: mid-cycle cloth addition, fault diagnostics, power-off memory, child lock, custom programming, quiet operation, high-temperature wash, self-cleaning drum, and mite removal.
Model SXQ-15D SXQ-15Z SXQ-20D SXQ-20Z SXQ-25D SXQ-25Z
Heating mode Electricity Vapour Electricity Vapour Electricity Vapour
Washing capacity (kg) 15 15 20 20 25 25
Drum diameter * depth (mm) 600*500 600*500 700*500 700*500 800*500 800*500
Motor power (KW) 0.75 0.75 1.5 1.5 3.5 3.5
Heating power/220V 6 / 6 / 6 /
Heating power/380V 9 / 9 / 18 /
Cold water pipe diameter (inch) 1/2 1/2 3/4 3/4 3/4 3/4
Hot water pipe diameter (inch) 1/2 1/2 3/4 3/4 6分 3/4
Steam inlet pipe diameter (inch) / 1/2 / 1/2 / 1/2
Compressed air pipe diameter (mm) / 8 / 8 / 8
Compressed air pressure (MPa) / 0.4~0.6 / 0.4~0.6 / 0.4~0.6
Drain pipe diameter (inch) 2 2 2 2 2 2
Steam consumption (Kg/h) 10 10 15 15 15 15
Voltage (V) 220/380 220/380 220/380 220/380 220/380 220/380
Length * Width * Height (mm) 800*975*1258 800*975*1258 900*1016*1305 900*1016*1305 980*1062*1425 980*1062*1425
Net weight (kg) 350 350 370 370 610 610
