CHARACTERSTIC AND PARAMETERS

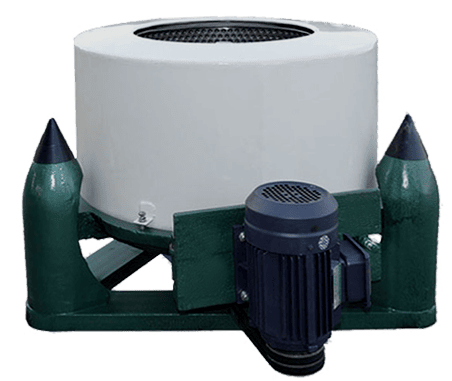

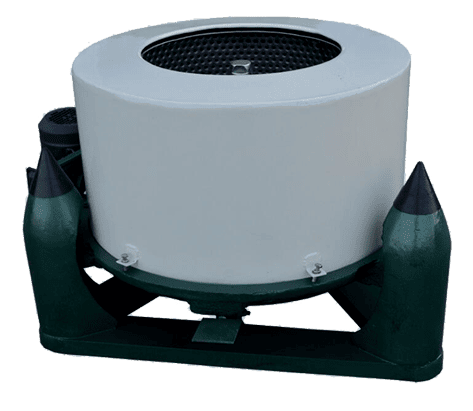

- Unique tripod suspension structure can avoid vibration caused by unbalanced load.
- The rotary tank is made of stainless steel plate. It is solid and durable.
- Special brake opening and closing arm device, good braking performance, safe and reliable.
- Three-tape transmission is adopted, and the starting wheel is driven by the motor, which starts slowly to the normal speed, and runs smoothly without vibration.
| Model | TL-25 | TL-35 | TL-50 | TL-70 | TL-100 |
|---|---|---|---|---|---|
| Dehydration capacity (Kg) | 25 | 35 | 50 | 70 | 100 |
| Dehydration speed (r/min) | 850 | 830 | 800 | 780 | 750 |
| Power supply voltage (V) | 380 | 380 | 380 | 380 | 380 |
| Motor power (KW) | 1.1 | 1.5 | 4 | 5.5 | 7.5 |
| Overall dimension (mm) | 1100×950×640 | 1200×1100×670 | 1500×1350×760 | 1650×1400×790 | 1850×1650×930 |
| Weight (Kg) | 300 | 350 | 400 | 650 | 900 |
