CHARACTERSTIC AND PARAMETERS
- The programmable computer controller adopts full automatic and standby manual operation modes, and the full Chinese operation interface is simple and clear. The large screen LCD display of the computer controller is highly automated, easy to operate, and the washing procedure is clear at a glance. The computer is equipped with automatic and manual conversion devices. Manual control can select the washing cycle, washing times, dehydration time and other advantages by pressing the button.
- The equipment adopts the lower-suspended mechanical shockproof structure, with small vibration and no need for foundation, saving installation costs, low noise and long service life.
- High quality sealing ring is adopted without leakage. The washing fabric has high cleanliness and thorough decontamination.
- Multiple automatic detergent separation containers can fully dissolve the chemicals and play a role without damaging the clothes.
- The frequency converter is two levels larger than the motor, with strong power, large redundancy and strong overload and overcurrent capacity. The variable frequency and stepless speed regulation can ensure the smooth operation of the machine, and the smooth transition of washing and desulphurization, which saves power compared with the traditional two-speed motor.
- The washing drum has been manufactured professionally for many years. After dynamic balance test and adjustment, it is stable in use and has good rigidity.

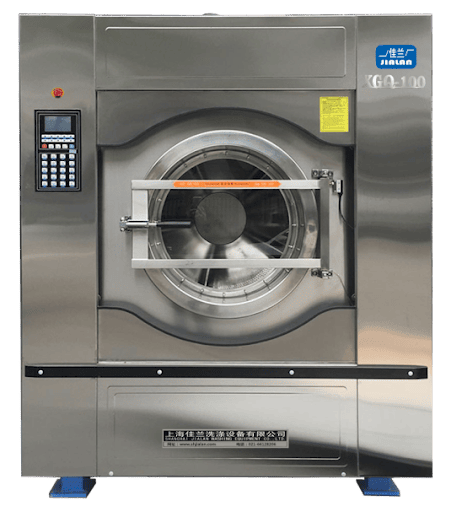

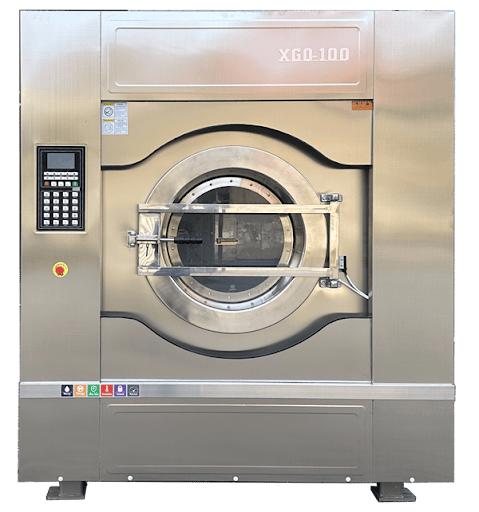

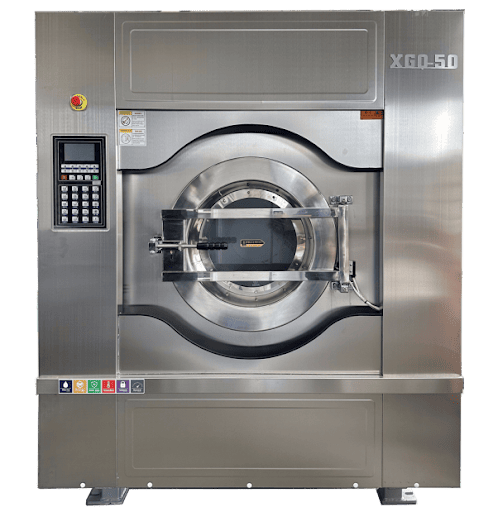

| Parameter model | Unit | XGQ-35 | XGQ-50 | XGQ-100 | XGQ-120 |
|---|---|---|---|---|---|
| Washing capacity | Kg | 35 | 50 | 100 | 120 |
| Drum size | mm | φ900*500 | φ1080*610 | φ1230*780 | φ1300*820 |
| Washing speed | rpm | 45 | 45 | 45 | 45 |
| High spin speed | rpm | 700 | 600 | 500 | 500 |
| Motor power | KW | 3 | 5.5 | 7.5 | 7.5 |
| Inverter power | KW | 4 | 7.5 | 11 | 15 |
| Electric heating power | KW | 10 | 18 | 36 | 48 |
| Inlet pipe Inlet | mm | φ25 | φ40 | φ50 | φ50 |
| Inlet pressure | MPa | 0.2~0.3 | 0.2~0.3 | 0.2~0.3 | 0.2~0.3 |
| Drainage pipe diameter | mm | φ50 | φ140 | φ140 | φ140 |
| Water consumption | Kg | 400 | 800 | 1750 | 2150 |
| Steam pipe diameter | mm | φ15 | φ25 | φ25 | φ25 |
| Steam pressure | MPa | 0.4~0.5 | 0.4~0.5 | 0.4~0.5 | 0.4~0.5 |
| Steam consumption | Kg | 35 | 45 | 90 | 110 |
| External dimensions | m | 1.4*1.4*1.85 | 1.62*1.64*2.1 | 1.98*1.8*2.25 | 1.95*1.95*2.15 |
| Whole machine weight | Kg | 1200 | 1800 | 3000 | 3300 |
