CHARACTERSTIC AND PARAMETERS
- It adopts large-screen dot-matrix LCD display and intelligent control system, and has a good human-computer dialogue interface in Chinese and English.
- Under the control of the computer, five times of folding and twisting are completed. The number of longitudinal and transverse folding can be freely programmed according to the fabric width and thickness.
- With dual-channel folding functio, it can double lift the ironing and folding ability of small linen and reduce energy consumption.
- The operating speed can be adjusted in a wide range and can be matched with various corresponding ironing machines.
- It has self-diagnosis function, perfect safety protection system and self-maintenance function of detection points.
- The computer board adopts relay output. No intermediate relay is needed, which reduces the fault points and facilitates maintenance and detection.
- All control components are DC 24V low-voltage components, which are safe, reliable and convenient for direct maintenance.
- All control valves are pneumatically controlled, with fast and reliable action and no pollution to the surrounding environment.
- This equipment is equipped with safety switches in many places, which is safe and reliable.

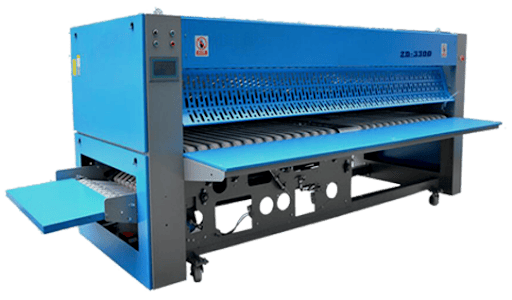

| Parameter/model | ZD3300-C5 |
|---|---|
| Maximum folding width (mm) | 3300 |
| Maximum folding speed (ordinary bed sheet) (m/min) | 10~50 |
| Working air supply pressure (MPa) | 0.5~0.7 |
| Compressed air consumption (L/min) | 约80 |
| Rated input power (Kw) | 2.8 |
| Displacement of equipped air compressor (M³/Min) | ≥0.3 |
| Overall dimension (length × wide × Height) (mm) | 4180×2710×1920 |
| Machine weight (Kg) | 1750 |
| External power wire diameter (mm²) | 4 |
| Power supply (V/P/Hz) | 380/3/50 |
